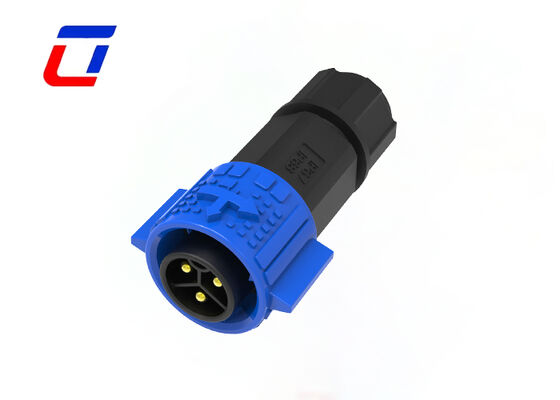

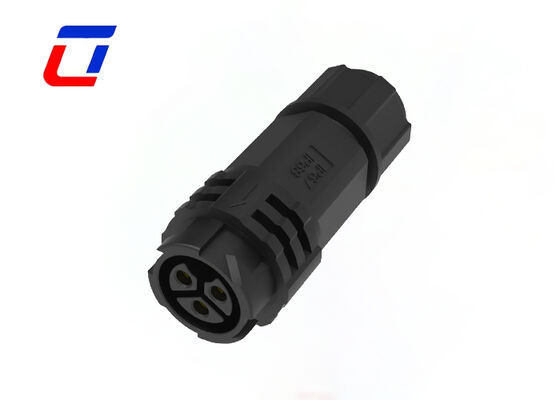

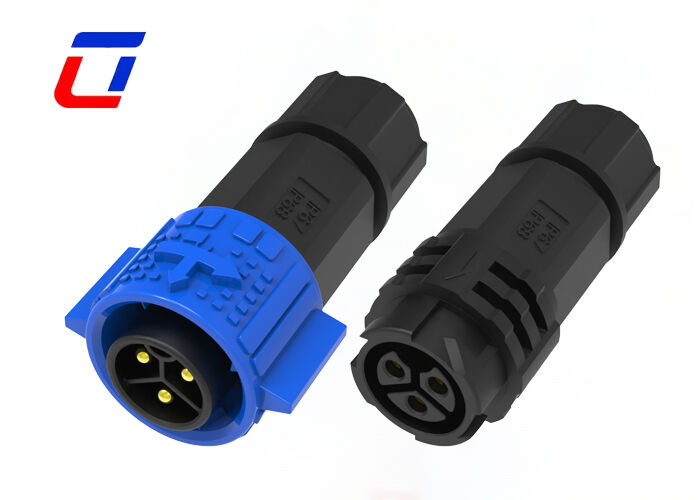

Name: waterproof connectors for landscape lighting M19 3Pin quick lock IP67 Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Prodotti Fermaglio maschio impermeabile

waterproof connectors for landscape lighting M19 3Pin quick lock IP67 Connector

Dettagli:

Luogo di origine:	Cina
Marca:	Ulinkcon
Certificazione:	CE/Rohs/TUV/UL
Numero di modello:	M19

Termini di pagamento e spedizione:

Quantità di ordine minimo:	negoziazione
Prezzo:	Negoziabile
Imballaggi particolari:	1. sacchetto di plastica;2. Cartone;3.Secondo le esigenze del cliente
Tempi di consegna:	3-6 giorni lavorativi
Termini di pagamento:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Capacità di alimentazione:	100000 coppie Montly

Contatto

Descrizione di prodotto dettagliata

Tensione nominale:	300 V	Grado di resistenza alla fiamma:	UL94-V0
Genere:	Da maschio a femmina	Colore:	Bianco Blu Rosso Nero Giallo
Materiale:	PA66	Livello di protezione:	IP67
Evidenziare:	waterproof M19 3Pin connector , IP67 quick lock connector , landscape lighting waterproof connector

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Power

Main Features

Item Name : M19 Waterproof Cable Connector
Specifications : Straight male-female mating, elbow male-female mating, front-mounted wire -to- board, rear-mounted wire -to-board,integrated injection molding
Coupling way: Self-locking
Pins number :2-22 pins
Plug : Assembly type and Injection type available
Socket: Front Mount, Back Mount, PCB Mount
Waterproof grade: IP67/ IP68
Connector type :Assembly lock screw；Assembly welding；Injection molding with cable
Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
Wiring range Assembled: 6. 0mm~16mm；Molding 6. 0mm~16.5 mm
Durability :3000 times
Applicabletemperature: -40℃~105℃

Quick Description

Core Specifications: Adopts M19 standard circular structure design, equipped with 3-pin core channels, rated voltage 300V, integrated with Quick Lock mechanism, customized for power transmission scenarios, suitable for efficient power docking needs of industrial-grade cables
Protection Performance: Equipped with reliable waterproof sealing structure, which can effectively resist the intrusion of outdoor rainwater, dust and moisture, ensure the insulation safety during power transmission, and adapt to various outdoor and humid industrial environments
Structure & Craftsmanship: The shell is made of high-weather-resistant engineering plastic, the pin core is made of high-conductivity brass material and precision-processed, combined with Quick Lock buckle design, which is easy to plug and unplug, firm in connection, and has excellent anti-vibration and anti-fall performance
Transmission Performance: 300V rated voltage is suitable for medium and low voltage power transmission needs, with low pin core contact resistance and strong current-carrying stability, which can effectively reduce energy consumption and heat generation during power transmission and ensure power supply continuity
Application Fields: Widely used in outdoor power distribution systems, industrial equipment power supply interfaces, new energy outdoor power supply facilities, security equipment power connections and other power transmission scenarios requiring Quick Lock and waterproof protection

Electrical Parameters
Number of Poles	3 pin waterproof wire connector
Current Rating	20A max.
Voltage Rating	300VAC max5
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	20A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

FAQ

1. Q: What shipping methods do you offer? How long is the delivery time?

A:We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.

2. Q:Can I pay after receiving the goods?

A: For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.

3. Q: When you ship my order?

A:Normally 2-3 days after receiving your payment, but it can be negotiated based on order qty and production schedule.
