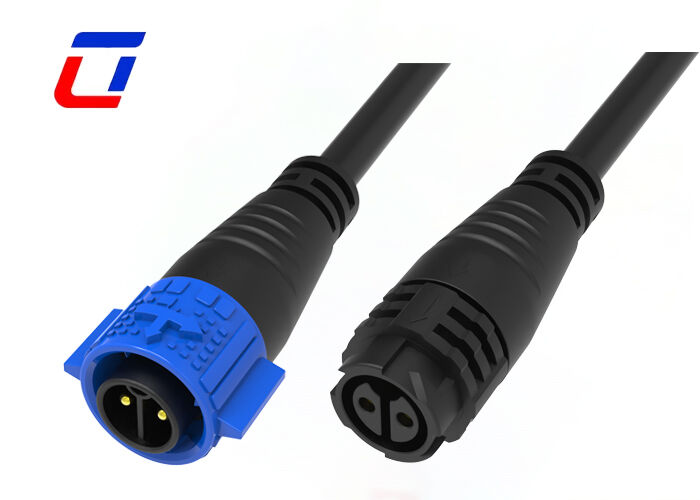

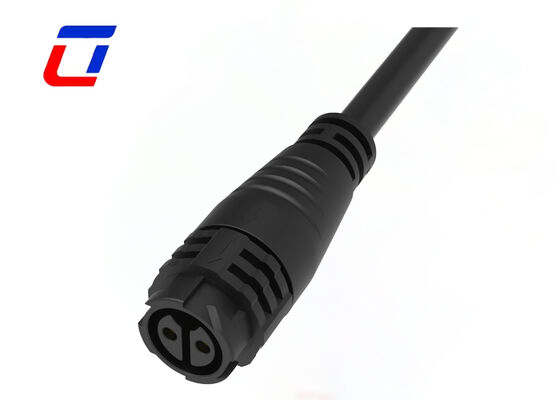

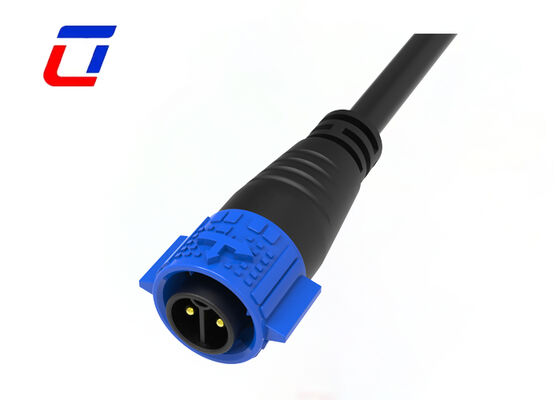

Name: M19 20A 2 Pin Waterproof Cable Connector Self Locking Industrial Power Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Prodotti connettore di cavo impermeabile

M19 20A 2 Pin Waterproof Cable Connector Self Locking Industrial Power Connector

Dettagli:

Luogo di origine:	Cina
Marca:	Ulinkcon
Certificazione:	CE/Rohs/UL/TUV
Numero di modello:	M19

Termini di pagamento e spedizione:

Quantità di ordine minimo:	Negoziazione
Prezzo:	Negoziabile
Imballaggi particolari:	scatola
Tempi di consegna:	Da 5 a 8 giorni lavorativi
Termini di pagamento:	T/T,D/A,D/P,MoneyGram,L/C
Capacità di alimentazione:	100000 coppie al mese

Contatto

Descrizione di prodotto dettagliata

Numero di pin:	2Pin	Materiale:	PA66 e lega di rame
Grado di resistenza alla fiamma:	UL94-V0	attuale:	20A
Tipo di connettore:	maschio autobloccante a femmina	Valutazione della tensione:	300 V
Evidenziare:	M19 waterproof cable connector , 2 pin industrial power connector , self-locking waterproof connector

IP67 2Pin 20A Push Lock High Current Power Waterproof Wire To Wire Connectors

Main Features

Push lock quick easy release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Quick Details

Widely used in industrial automation equipment, outdoor electromechanical devices, photovoltaic power supply systems, small and medium construction machinery, outdoor lighting main power circuits and security equipment power systems. Ideal for industrial scenarios requiring high-power stable power supply, waterproof, anti-vibration and fast simple wiring.

Minimalist 2-Pin Pure Power Layout: Designed with dedicated dual power channels without redundant signal pins, the connector focuses purely on industrial power transmission. Reasonable pin spacing and reinforced insulation effectively avoid short circuits and circuit crosstalk, ensuring safe and stable one-way or two-way power transmission for low-voltage industrial equipment.
20A High-Current Low-Loss Power Supply: Built with widened and thickened high-conductivity terminals to reduce internal resistance. It supports long-term stable 20A high-current output with low temperature rise and minimal power loss. It effectively solves overheating and voltage drop problems under heavy load, ensuring all-day continuous power supply for industrial equipment.
Integrated Molded Cable for Superior Durability: The plug and cable are integrally molded without splicing gaps, completely avoiding wire loosening and water ingress of split connectors. The reinforced cable root resists frequent bending, pulling and mechanical tension, adapting to long-term dynamic wiring in workshops and outdoor environments.
Tool-Free Self-Locking & Anti-Vibration Structure: Upgraded elastic self-locking buckle realizes automatic locking after insertion and easy release by pressing. No threads or tools are required, greatly improving installation and maintenance efficiency. The firm locking state resists equipment vibration and cable pulling to prevent intermittent power failure.
IP67 Full Ingress Protection for Harsh Environments: Fitted with high-elastic durable silicone gaskets, the connector forms a fully sealed cavity after mating. It effectively blocks rainwater immersion, dust accumulation, condensation and light oil corrosion, maintaining stable power transmission in humid, dusty and open-air industrial scenarios.
Wide-Temperature Industrial Weather Resistance: Made of high-strength modified flame-retardant plastic, the housing features excellent impact resistance, aging resistance and corrosion resistance. It operates stably from -40℃ to +105℃, resisting low-temperature embrittlement, high-temperature softening and UV radiation for long-term industrial outdoor service.

Product Type Features
Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, socket
Shell Type	Plastic Shell
Product Type	Connector Kit

Electrical Characteristics
Number of Poles	2
Current Rating	20A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Body Features
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes

Usage Conditions
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Operation/Application
Durability Rating (Cycles)	250, 251
Industry Standards
UL Flammability Rating	UL 94V-0

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

More Technical Details

M19 20A 2 Pin Waterproof Cable Connector Self Locking Industrial Power Connector 1

FAQ

Q1:How can I get samples?

A1:It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

Q2:What shipping methods do you offer? How long is the delivery time?

A2: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Q3:Is there a discount for large-quantity orders?

A3: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
