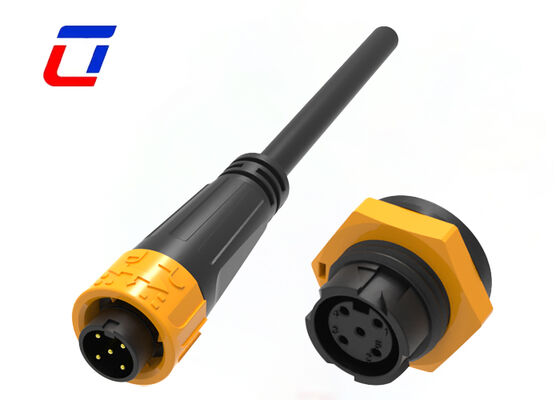

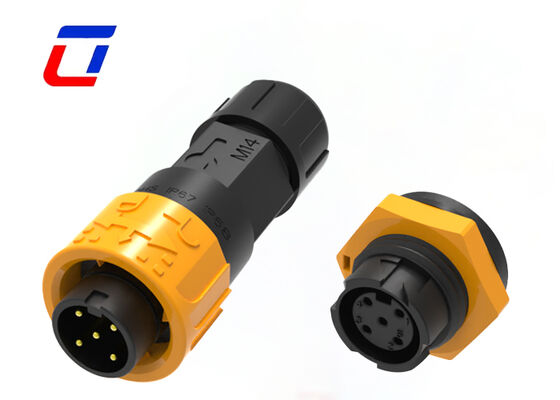

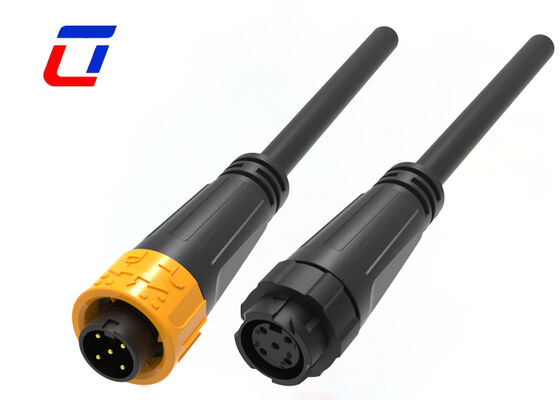

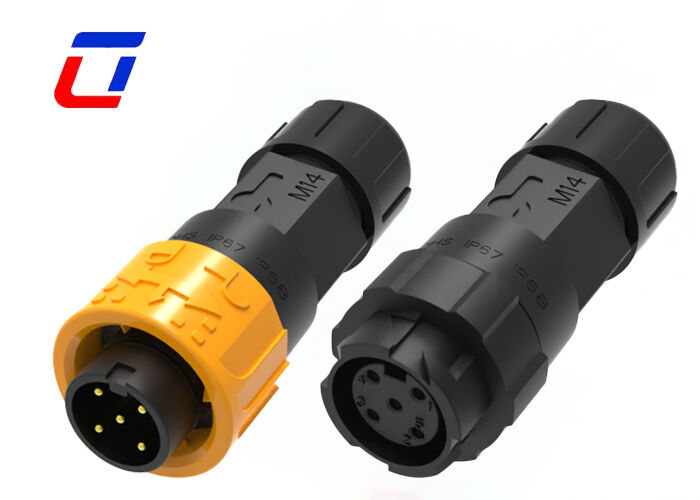

8A M16 5 Pin Outdoor Power Connector Plastic PA66 300V Waterproof Quick Lock Connector

Product Overview

M16 5 Pin 300V Push Lock Waterproof Circular Connector IP67 For Heavy-Duty Applications

300V High Withstand Voltage for Enhanced Electrical Safety
Optimized with reinforced insulation structure, the connector supports rated voltage up to 300V. The durable insulation layer resists regular voltage fluctuation on site and prevents electric leakage or breakdown. It fully complies with voltage standards of outdoor and light industrial equipment and ensures safe operation during long-term power-on work.

Durable PA66 Plastic Housing for Excellent Mechanical Performance
The shell is made of high-toughness PA66 engineering material, featuring strong impact resistance and bending resistance. It is not easy to crack or deform, and comes with reliable flame retardance and anti-aging properties. It stands up to long-term outdoor UV exposure, temperature difference and mild chemical corrosion while keeping stable structural performance.

Tool-Free Quick Lock Self-Locking Connection
Built with integrated buckle locking structure, the connector locks automatically after insertion and releases easily by pressing. No tools or twisting are required during operation. The tight locked connection delivers great anti-loosening performance against mechanical vibration and cable pulling, avoiding poor contact and unexpected power cut effectively.

5-Pin Universal Design for Stable 8A Power Transmission
The well-arranged 5 pins are designed with large contact area, low conductive resistance and low heat generation. It delivers steady 8A continuous current output and fits a wide range of small and medium-sized outdoor electrical devices. Its strong compatibility allows flexible matching with various wiring solutions.

IP67 Dust & Water Protection for All-Weather Outdoor Use
Fitted with high-elastic sealing gaskets, the connector achieves fully sealed connection after locking. It effectively blocks rain, dew, dust and mist from entering the interior. It works steadily in rainy, dusty and humid outdoor environments and reduces equipment failure caused by harsh external conditions.

Wide Temperature Adaptability
It operates normally within the temperature range from -40℃ to +105℃. The connection and conductive performance will not be affected by extreme cold or intense heat, expanding the applicable regions and working scenarios of connected equipment.

• Push-lock quick release system
• Multiple core options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
• Field assembly version supports both wire-to-wire and wire-to-board connections
• High current rating up to 8A for continuous operation
• Cable assembly service available for custom requirements
• OEM/ODM services supported

• Communications equipment
• Product coding machines
• Inventory product coding systems
• Inkjet systems
• Solar power systems
• Industrial inkjet equipment
• Electric power equipment
• Laboratory forensic & pathology equipment
• Heavy machinery
