Name: 7 Phase Cable Connector Male To Female M16 Waterproof Quick Lock Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Casa Prodotti Collegamento di dati impermeabile

7 Phase Cable Connector Male To Female M16 Waterproof Quick Lock Connector

Dettagli:

Luogo di origine:	Cina
Marca:	Ulinkcon
Certificazione:	CE/Rohs/TUV/UL
Numero di modello:	M16

Termini di pagamento e spedizione:

Quantità di ordine minimo:	Negoziazione
Prezzo:	Negoziabile
Imballaggi particolari:	1. Sacchetto di plastica; 2. Cartone; 3. Secondo i requisiti del cliente
Tempi di consegna:	3~6 giorni lavorativi
Termini di pagamento:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Capacità di alimentazione:	100000 paia mensili

Contatto

Descrizione di prodotto dettagliata

SPILLO:	7Pin	Tipo di connettore:	Cavo maschio/femmina da collegare
Valutazione attuale:	5A	Tensione nominale:	60 V
Materiale:	Nylon	Livello di protezione:	IP67
Funzioni elettriche:	Trasmissione del segnale	Funzioni meccaniche:	Connessione/disconnessione rapida
Evidenziare:	M16 waterproof quick lock connector , 7 phase waterproof data connector , male to female waterproof cable connector

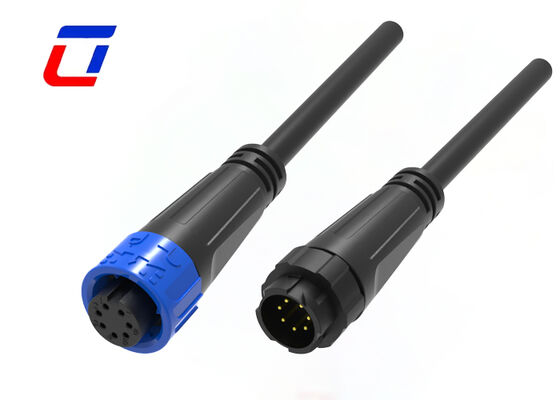

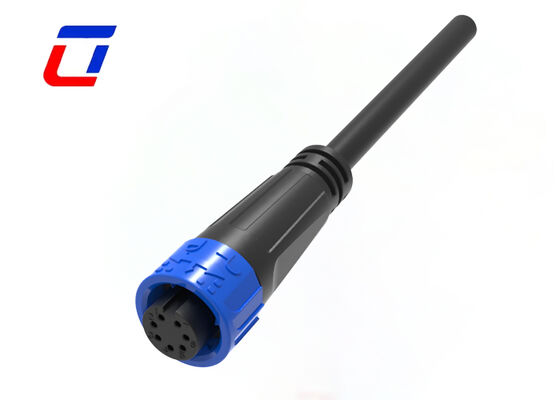

7 Phase Cable Connector Male To Female M16 Waterproof Quick Lock Connector

CE M16 Wire Splice Connector Waterproof 7 Pin Outdoor Cable Nylon Connector

Product Overview

The quick-lock mechanism is one of its core advantages—no complex tools are required, and plugging, unplugging and locking can be completed easily by hand. It locks firmly after insertion, which can resist slight pulling and equipment vibration in daily use, preventing accidental disconnection and ensuring uninterrupted data transmission.

It is widely used in various fields requiring 7-phase data transmission, such as industrial control systems, intelligent equipment, new energy data monitoring, instrumentation and precision electronic equipment, providing reliable connection support for the stable operation of various data transmission equipment.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 7Pin, 8Pin, 2+4Pin
Field assembly version: wire to wire / wire to board
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Technical Specifications

Parameter	Specification
Number of Poles	7Pin
Current Rating	5A max.
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60 s.
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Product Design

Frequently Asked Questions

What shipping methods do you offer? How long is the delivery time?

We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Where is your factory located?

Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

How do I place an order? What is the process?

The order process is simple: 1) Confirm product details and get a proforma invoice (PI); 2) Make the down payment as agreed; 3) We start production and update you with progress; 4) Pay the balance before shipment; 5) Arrange delivery and provide tracking information.

Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
