Name: 20A 3 Pin Power Cable Connector M19 DC Waterproof Quick Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Prodotti Incavo impermeabile della spina

20A 3 Pin Power Cable Connector M19 DC Waterproof Quick Connector

Dettagli:

Luogo di origine:	Cina
Marca:	Ulinkcon
Certificazione:	CE/Rohs/TUV/UL
Numero di modello:	M19

Termini di pagamento e spedizione:

Quantità di ordine minimo:	Negoziazione
Prezzo:	Negoziabile
Imballaggi particolari:	1. Sacchetto di plastica; 2. Cartone; 3. Secondo i requisiti del cliente
Tempi di consegna:	3~6 giorni lavorativi
Termini di pagamento:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Capacità di alimentazione:	100000 paia mensili

Contatto

Descrizione di prodotto dettagliata

Valutazione attuale:	20A	Materiale:	PA66 e Ottone stagnato
Tensione nominale:	300 V	Grado di resistenza alla fiamma:	UL94-V0
Tipo:	Cavi a fili	Temperatura:	-40~105°C
Evidenziare:	20A waterproof power connector , M19 DC quick connector , 3 pin waterproof plug socket

20A 3 Pin Power Cable Connector M19 DC Waterproof Quick Connector

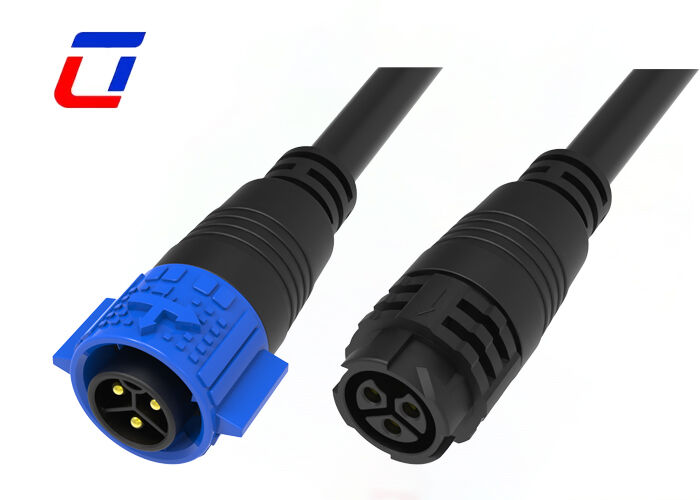

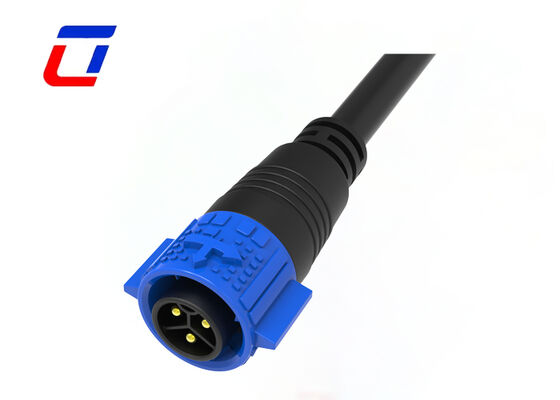

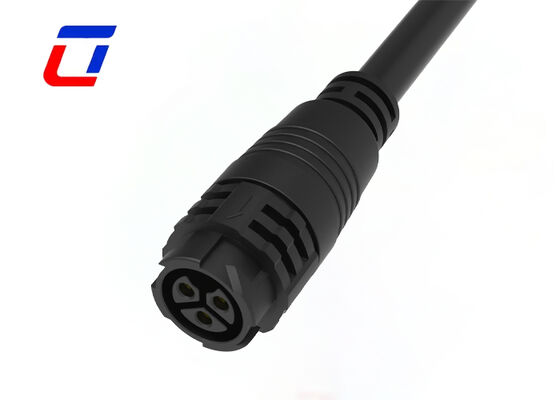

Product Overview

M19 3 Pin 300V Waterproof Cable Connector Quick Lock For Power

Main Features

Item Name: M19 Waterproof Cable Connector
Specifications: Straight male-female mating, elbow male-female mating, front-mounted wire-to-board, rear-mounted wire-to-board, integrated injection molding
Coupling way: Self-locking
Pins number: 2-22 pins
Plug: Assembly type and Injection type available
Socket: Front Mount, Back Mount, PCB Mount
Waterproof grade: IP67/IP68
Connector type: Assembly lock screw; Assembly welding; Injection molding with cable
Wire gauge: 1.0-6.0mm² (18AWG-10AWG)
Wiring range Assembled: 6.0mm~16mm; Molding 6.0mm~16.5mm
Durability: 3000 times
Applicable temperature: -40℃~105℃

Quick Description

Adopting standard M19 interface specification, this connector perfectly matches 3-pin power supply systems with a rated current of 20A. It efficiently transmits power while minimizing power loss, balancing connection versatility and power supply stability, and adapting to the interface needs of various outdoor electrical equipment.

IP67 High-Level Protection Performance: Achieves IP67 dustproof and waterproof rating, effectively resisting rain, water spray, humidity, dust, oil contamination and corrosion. Builds a solid protection barrier for outdoor power connections, eliminating transmission failures and safety hazards caused by foreign matter intrusion.
Stable Rated Parameter Configuration: With a rated current of 20A and standard M19 interface, it perfectly fits 3-pin power supply systems, ensuring stable current transmission and minimizing power loss to meet the continuous power supply needs of outdoor equipment.
All-Scenario Weather Adaptability: Copes with complex and harsh scenarios such as open-air areas, construction sites, mines and docks, maintaining connection tightness and operational safety at all times, and fundamentally avoiding environmental-induced risks such as short circuits and electric leakage.
High-Strength Durable Construction: Housing made of high-strength engineering plastic with excellent impact resistance and anti-aging performance. Temperature tolerance range covers -40℃ to 105℃, resistant to deformation or cracking after long-term outdoor use, adapting to extreme climates in different regions.
High-Efficiency Conductive Terminal Design: Equipped with high-quality, high-conductivity copper terminals with special plating treatment. Greatly reduces contact resistance, improves conductivity, enhances oxidation and corrosion resistance, and significantly extends product service life.

Technical Specifications

Electrical Parameters

Number of Poles	3 pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

Frequently Asked Questions

What shipping methods do you offer? How long is the delivery time?

We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3-7 working days for small parcels; 2) Air freight: 7-15 working days; 3) Sea freight: 20-45 working days. Delivery time varies by destination and shipping method.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

How to buy your products?

You need to do as followings:

Confirm Current Rating and Number of Contacts
Confirm Assembly style
Confirm Cable Wire gauge
Confirm Cable Length and Material

Prodotto Tag:

Persona di contatto: Miss. Gina

Telefono: +86 075523019434
