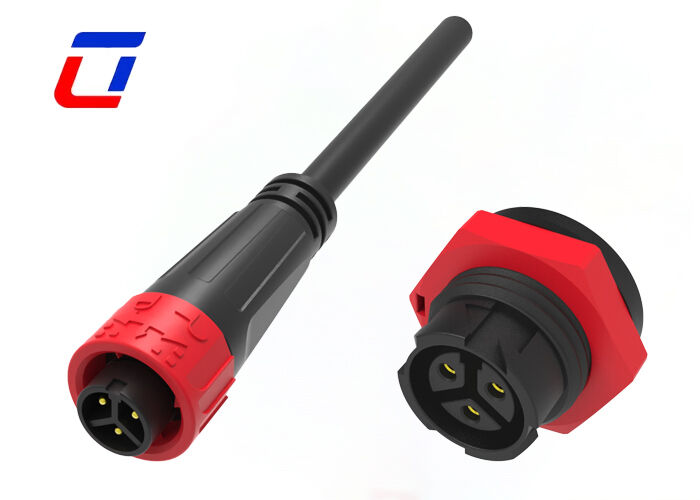

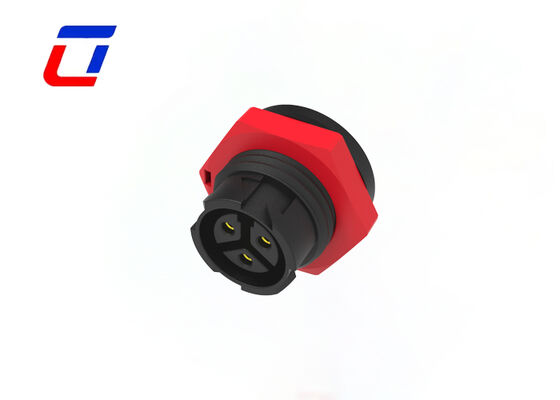

Name: M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M16
Availability: InStock

Casa Prodotti Incavo impermeabile della spina

M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector

Dettagli:

Luogo di origine:	Cina
Marca:	Ulinkcon
Certificazione:	CE/Rohs
Numero di modello:	M16

Termini di pagamento e spedizione:

Quantità di ordine minimo:	Negoziazione
Prezzo:	Negoziabile
Imballaggi particolari:	Cartone di esportazione di alta qualità
Tempi di consegna:	3~6 giorni lavorativi
Termini di pagamento:	T/T,D/A,D/P,MoneyGram,L/C
Capacità di alimentazione:	100000 coppie al mese

Contatto

Descrizione di prodotto dettagliata

Numero di perni:	3 pin	Attuale:	10A massimo
Tensione nominale:	300 V	Valutazione di impermeabilità:	IP67
Colore:	Rosso Blu Bianco Nero Giallo	Campi di industria:	Automazione Industriale/Nuove Energie/Ingegneria delle Costruzioni
Evidenziare:	M16 3 pin waterproof connector , IP67 panel mount connector , quick lock molded connector

M16 3 Pin Panel Mount Connector Quick Lock IP67 Waterproof Molded Connector

Product Overview

Quick Release M16 3Pin Waterproof Circular Connector designed for industrial automation applications. This 3-pin male-to-female docking circular connector features M16 standard specification and high-strength plastic housing, providing high-reliability power connection for complex industrial environments.

Key Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin available
Field assembly version: wire-to-wire and wire-to-board options
High current rated waterproof connector up to 10A for continuous operation
Cable assembly service supported with customization options
OEM/ODM services available

Electrical Specifications

Number of Poles	3Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s

Technical Specifications

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application Industries

Communications equipment
Product coding machines
Inventory product coding systems
Inkjet systems
Solar systems
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimensions

Technical Details

Frequently Asked Questions

Q1: How many materials can you provide?

There are different materials available for connectors and cables. We typically use PVC/Nylon material for connectors and PVC/Rubber/Silicone material for cables. We can also select materials according to your specific requirements.

Q2: Can I pay after receiving the goods?

For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.

Q3: Can I have custom labeling?

Yes, you can create your own private label and packaging. If you need packaging design services, we also have professional designers available to assist you.
