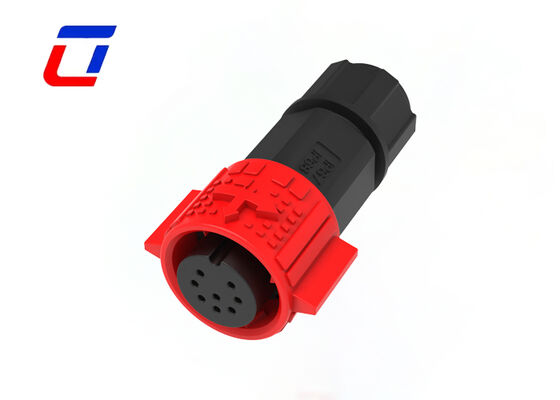

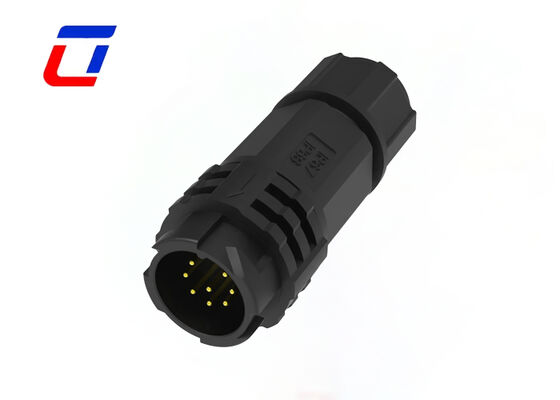

Name: 300V Waterproof Quick Disconnect Wire Connectors M19 8Pin IP67 Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Prodotti Collegamento di dati impermeabile

300V Waterproof Quick Disconnect Wire Connectors M19 8Pin IP67 Connectors

Dettagli:

Luogo di origine:	Cina
Marca:	Ulinkcon
Certificazione:	CE/Rohs/TUV/UL
Numero di modello:	M19

Termini di pagamento e spedizione:

Quantità di ordine minimo:	negoziazione
Prezzo:	Negoziabile
Imballaggi particolari:	1. sacchetto di plastica;2. Cartone;3.Secondo le esigenze del cliente
Tempi di consegna:	3-6 giorni lavorativi
Termini di pagamento:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Capacità di alimentazione:	100000 coppie Montly

Contatto

Descrizione di prodotto dettagliata

Spillo:	8Pin	Valutazione attuale:	5A
Materiale:	Nylon	Tensione nominale:	300 V
Temperatura operativa:	-40℃-+105℃	Grado di resistenza alla fiamma:	UL94-V0
Evidenziare:	300V waterproof M19 8Pin connector , IP67 quick disconnect wire connector , waterproof data connector with 300V

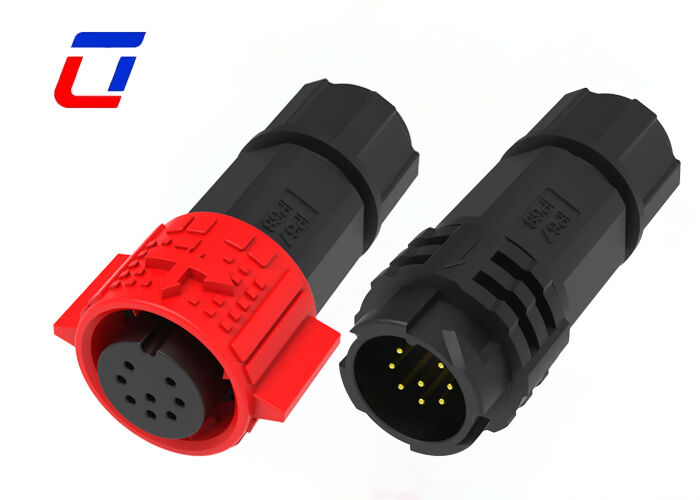

8 Pin Circular Connector M19 Waterproof Connectors

Quick Description

Product Highlights: Focusing on the core needs of 300V medium and low voltage wire connection, it creates an M19 specification 8Pin multi-channel quick-disconnect connector, integrating IP67 high-level waterproof protection and convenient operation and maintenance design. It can not only adapt to complex industrial working conditions but also meet the frequent plugging and unplugging needs in harsh outdoor environments

Core Specifications: The interface adopts M19 standard circular design, equipped with 8Pin signal and power composite transmission channels, rated voltage 300V, supporting wire-to-wire direct connection mode; built-in precise male-female pairing structure and quick-disconnect mechanism, which can realize multi-channel synchronous transmission, adapting to the efficient connection needs of medium and low voltage systems

Protection & Material: Strictly follows the IP67 industrial protection standard, enabling complete dustproof and temporary water immersion protection at 1m water depth for 30 minutes; adopts a full-circumference integrated sealing gasket, which can effectively isolate rainwater, dust, moisture and oil pollution intrusion; the shell is made of PA66 reinforced engineering plastic, with excellent weather resistance and impact resistance

Convenient Operation & Maintenance Design: Innovative snap-on quick-disconnect structure with clear plugging feedback, allowing a single person to easily complete connection and separation operations, significantly reducing operation and maintenance time costs; the pin core adopts high-precision brass gold plating process, which is not only anti-oxidation and corrosion-resistant but also has excellent anti-vibration and anti-fall performance

Transmission Guarantee & Application Fields: Optimizes the transmission link for 300V voltage scenarios. The 8Pin independent channel design physically avoids mutual interference between signals and power, with low contact resistance and small transmission loss, ensuring the stability of power supply and signal transmission; widely used in industrial automation wiring, outdoor lighting systems, new energy medium and low voltage equipment, security line extension, medical instrument power supply and other scenarios

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 5A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Electrical Parameters
Number of Poles	8Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

300V Waterproof Quick Disconnect Wire Connectors M19 8Pin IP67 Connectors 1

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: What payment methods do you accept?
A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.

3. Q: How to track my shipment?

A: Once the goods are shipped, we will send you the tracking number and logistics platform link. You can track the real - time status online or contact our team for updates.
