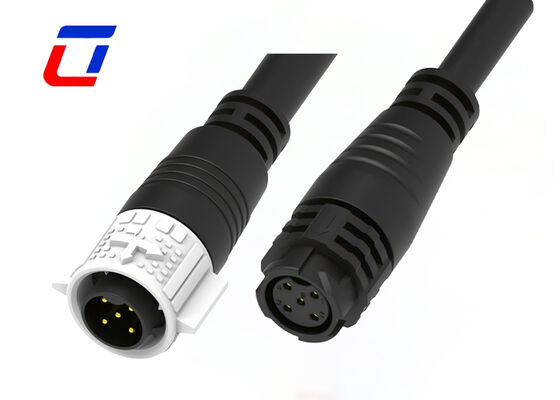

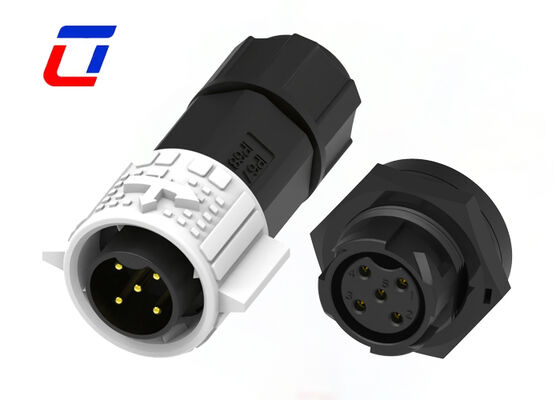

Name: 20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Prodotti Collegamento circolare impermeabile

20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors

Dettagli:

Luogo di origine:	Cina
Marca:	Ulinkcon
Certificazione:	CE/Rohs/TUV/UL
Numero di modello:	M19

Termini di pagamento e spedizione:

Quantità di ordine minimo:	negoziazione
Prezzo:	Negoziabile
Imballaggi particolari:	1. sacchetto di plastica;2. Cartone;3.Secondo le esigenze del cliente
Tempi di consegna:	3-6 giorni lavorativi
Termini di pagamento:	T/T,D/P,L/C,D/A,,Western Union,MoneyGram
Capacità di alimentazione:	100000 coppie Montly

Contatto

Descrizione di prodotto dettagliata

Valutazione attuale:	20A	Tensione nominale:	300 V
Spillo:	5Pin	Genere:	Da maschio a femmina
Grado di resistenza alla fiamma:	UL94-V0	Materiale:	Nylon
Evidenziare:	20A waterproof electrical connector , M19 5 pin power connector , PA66 waterproof circular connector

5 Pin Circular M19 PA66 300V Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Quick Description

Product Positioning: Focus on industrial multi-channel power connection needs, adopts M19 standard circular interface design, 5Pin dedicated power pin layout, 20A high current carrying specification, paired with PA66 weather-resistant shell, specially built for stable power supply connection in complex industrial scenarios
Core Configuration: Interface specification M19, 5Pin power-dedicated pin core, rated current 20A, supports male-female quick pairing, suitable for industrial medium and low voltage power systems (usually compatible with 300V and below), meeting the parallel power supply needs of multi-module equipment
Material & Protection: The shell is made of PA66 reinforced engineering plastic, with excellent flame retardancy, aging resistance and impact strength; built-in dual waterproof sealing structure, which can effectively isolate rainwater, industrial dust and moisture, ensuring power supply safety in harsh environments
Power Transmission Advantages: The pin core adopts high-conductivity brass gold-plating process, with extremely low contact resistance and oxidation resistance, 20A high current transmission is stable without heating; 5Pin independent layout can realize separate transmission of multiple groups of power , avoiding interference, suitable for long-term continuous operation of industrial equipment
Application Scenarios: Widely used in industrial automation multi-module equipment power supply, outdoor industrial control power distribution, new energy industrial energy storage facilities, heavy machinery electrical systems, smart factory wiring projects and other industrial scenarios requiring multi-channel power connection

Electrical Parameters
Number of Poles	5Pin
Current Rating	20A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: What shipping methods do you offer? How long is the delivery time?

A: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

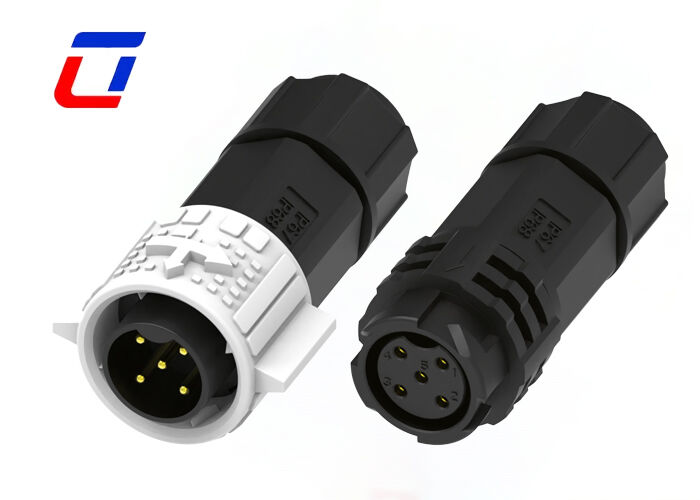

20A M19 5 Pin Waterproof Connector PA66 Power Pin Electrical Connectors 2
