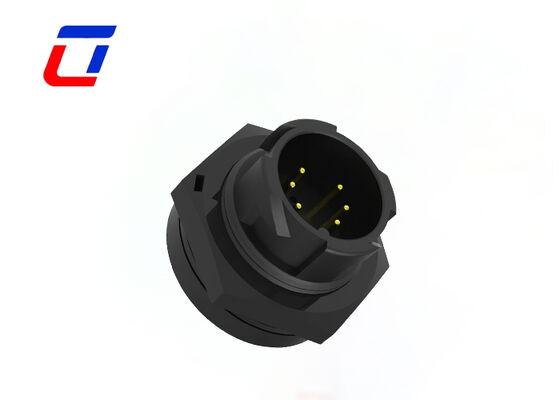

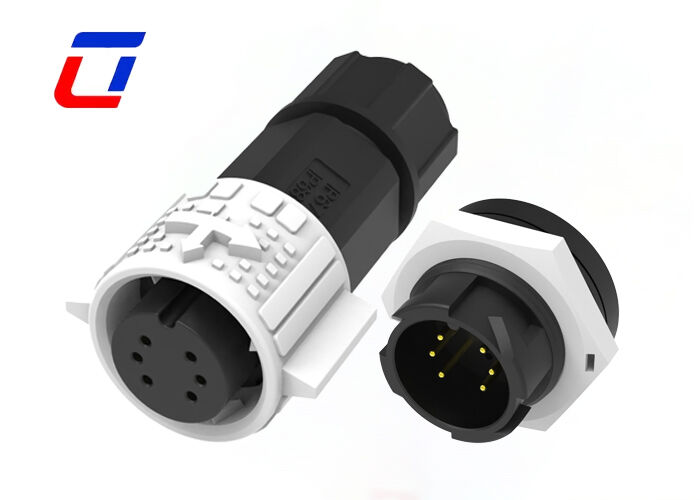

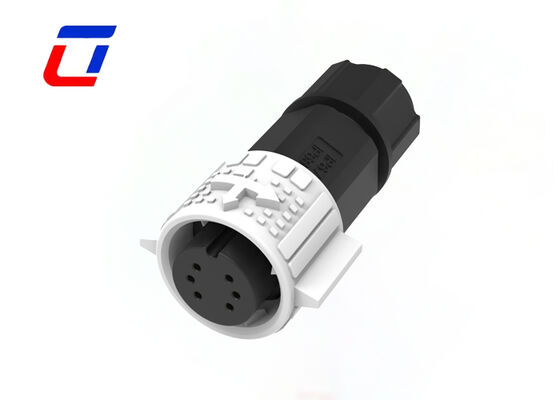

Name: 15A M19 6Pin Waterproof Low Voltage Connectors ODM Plug And Socket Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Casa Prodotti Incavo impermeabile della spina

15A M19 6Pin Waterproof Low Voltage Connectors ODM Plug And Socket Connector

Dettagli:

Luogo di origine:	Cina
Marca:	Ulinkcon
Certificazione:	CE/Rohs
Numero di modello:	M19

Termini di pagamento e spedizione:

Quantità di ordine minimo:	negoziazione
Prezzo:	Negoziabile
Imballaggi particolari:	Cartone di esportazione di alta qualità
Tempi di consegna:	3~6 giorni lavorativi
Termini di pagamento:	T/T,D/A,D/P,MoneyGram,L/C
Capacità di alimentazione:	100000 coppie al mese

Contatto

Descrizione di prodotto dettagliata

Numero di perni:	6Pin	Attuale:	15A
Tensione nominale:	300 V	Valutazione di impermeabilità:	IP67
Colore:	Rosso Blu Bianco Nero Giallo	Tipo:	Plug & Socket
Evidenziare:	15A waterproof plug socket , M19 6Pin low voltage connector , ODM waterproof plug and socket

6 Pin IP67 Connector M19 Waterproof Wire Splice Connector

Description of Industrial Waterproof Circular Connector

Core Electrical Parameters: Adopts M19 standard circular structure, equipped with 6-pin signal/power composite channels, rated current 15A, plug-and-socket pairing design ensures connection accuracy and stability
Protection & Weather Resistance: Equipped with professional waterproof sealing structure, which can effectively resist rainwater, dust and moisture intrusion, suitable for outdoor and humid industrial environments, ensuring insulation safety and long-term reliability of low-voltage circuit connections
Structural Design Highlights: The shell is made of aging-resistant engineering plastic dedicated for low voltage, and the pin core is made of high-conductivity brass gold-plated material, with smooth plugging feel, excellent anti-vibration and anti-fall performance after connection, meeting the needs of frequent industrial use
Low-Voltage Transmission Advantages: Optimized design for low-voltage scenarios, extremely low transmission loss, 15A rated current can stably meet the power supply needs of small and medium-sized low-voltage equipment, avoiding overload heating risks
ODM Customization Advantages: Supports full-link ODM customization services, which can customize pin quantity, rated parameters, shell material, wiring method and appearance color according to customer needs, adapting to the personalized connection needs of equipment in different industries, and providing one-stop service from scheme design to mass production
Application Scenarios: Widely used in smart home low-voltage power supply, industrial automation low-voltage equipment, new energy small energy storage facilities, outdoor portable electronic equipment, medical low-voltage instruments and other low-voltage scenarios requiring waterproof plug-and-socket connections

Main Feature

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for power
3+2,3+3,3+4,3+5,2+20Pin is Power and signal combination
9Pin,10Pin,12Pin,14Pin,16Pin,18Pin for signal
Field assembly version:both wire to wire and wire to board options
High current rated waterproof connector good choice up to 15A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	6Pin waterproof connector
Current Rating	15A max
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

15A M19 6Pin Waterproof Low Voltage Connectors ODM Plug And Socket Connector 0

More Technical Details

15A M19 6Pin Waterproof Low Voltage Connectors ODM Plug And Socket Connector 1

FAQ

Q1:What is rated voltage?

A1:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.

Q2:What shipping methods do you offer? How long is the delivery time?

A2: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.

Q3:Who is responsible for customs clearance? Do you provide necessary documents?

A3: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

15A M19 6Pin Waterproof Low Voltage Connectors ODM Plug And Socket Connector 2
