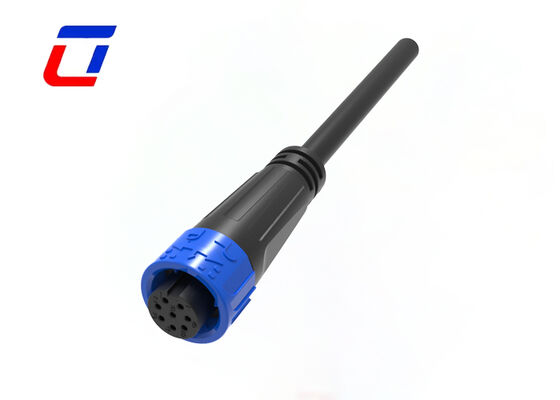

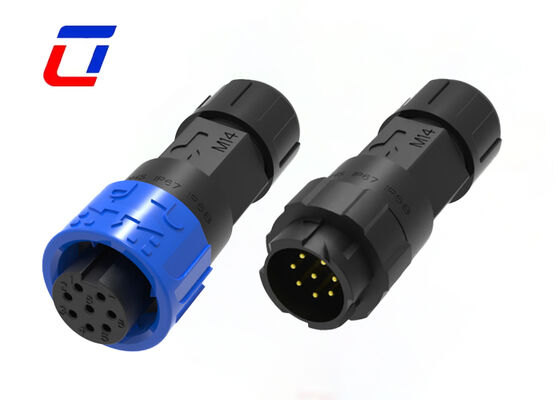

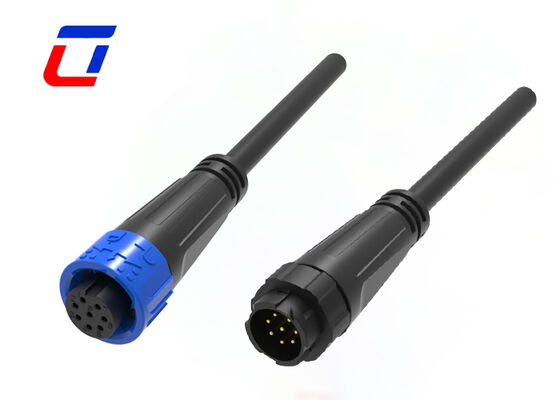

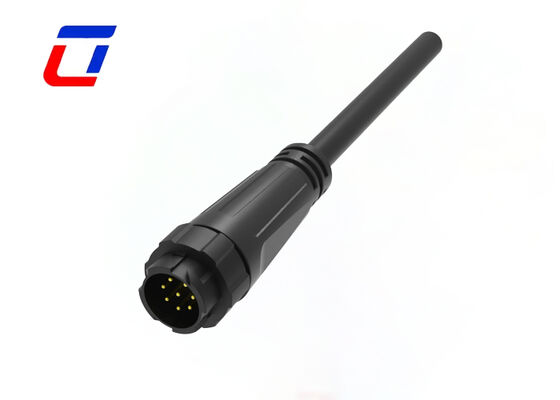

8Pin Female Connector Cable M16 Waterproof Bulkhead Electrical Connectors
Quick Details of 8Pin waterproof connector
The 8-pin female connector configuration supports stable simultaneous transmission of low-power signals and small-current power, meeting multi-functional electrical connection demands for industrial, automotive, or outdoor equipment.
Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
| Product Type Features |
| Connector System |
Cable-to-Board |
| Sealable |
Yes |
| Connector & Contact Terminates To |
Wire & Cable |
| Circular Connector Type |
Plug, socket |
| Shell Type |
Plastic Shell |
| Product Type |
Connector Kit |
| Electrical Characteristics |
| Number of Poles |
8 |
| Current Rating |
5A max. |
| Voltage Rating |
60VAC max |
| Durability Voltage |
500VAC @ 60 s. |
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin,7Pin,8Pin,2+4Pin for Power
- Field assembly version:both wire to wire and wire to board options
- Current rated 5A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Body Features |
| Shell Material |
PA66 |
| Circular Connector Insulation Material Type |
Low Fire Hazard Thermoplastic |
| Hermetically Sealed |
Yes |
| Entry Style |
Side |
| Environmental Protection Type |
Elastomer Sealed, Hermetically Sealed |
| O-Ring Material |
Elastomer Sealed, Hermetically Sealed |
| Environmental Protection |
Yes |
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
| Usage Conditions |
| Operating Temperature Range (°C) |
-40 ~+105°C |
| IP Water Sealing Level |
IP67 |
| IP Dust Sealing Level |
6 |
| Operation/Application |
| Durability Rating (Cycles) |
500 |
| Industry Standards |
| UL Flammability Rating |
UL 94V-0 |
Production Dimension
More Technical Details
FAQ
Q1:Are your products certified? What certifications do you have?
A1:All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q2:What is rated Current?
A2: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
Q3:What is your Minimum Order Quantity (MOQ)?
A3: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
